These are used where the currents and voltages are low.
They are particularly suitable for assembly in mosaic panels with tiles measuring 24 x 24 mm.

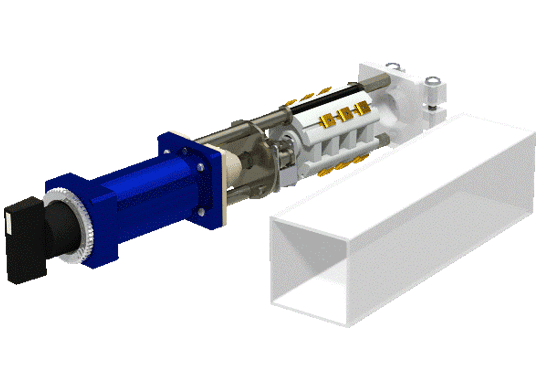

C201: Stay-put Positions.
C203: Spring Return.
Can have from 2 to 8 positions with notching mechanism from 45° to 90°, it is designed to be fitted on mosaic panels with tiles of 24x24mm.

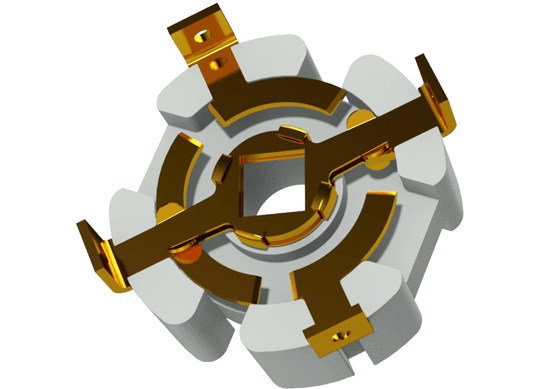

The fitting is made from the front of the panel using a threaded ring nut and up to 8 contact packets can be assembled.
Thanks to the pin cover an effective protection against accidental contancts is provided (IP20 finger-proof) in conformity with the standard IEC EN 60529.

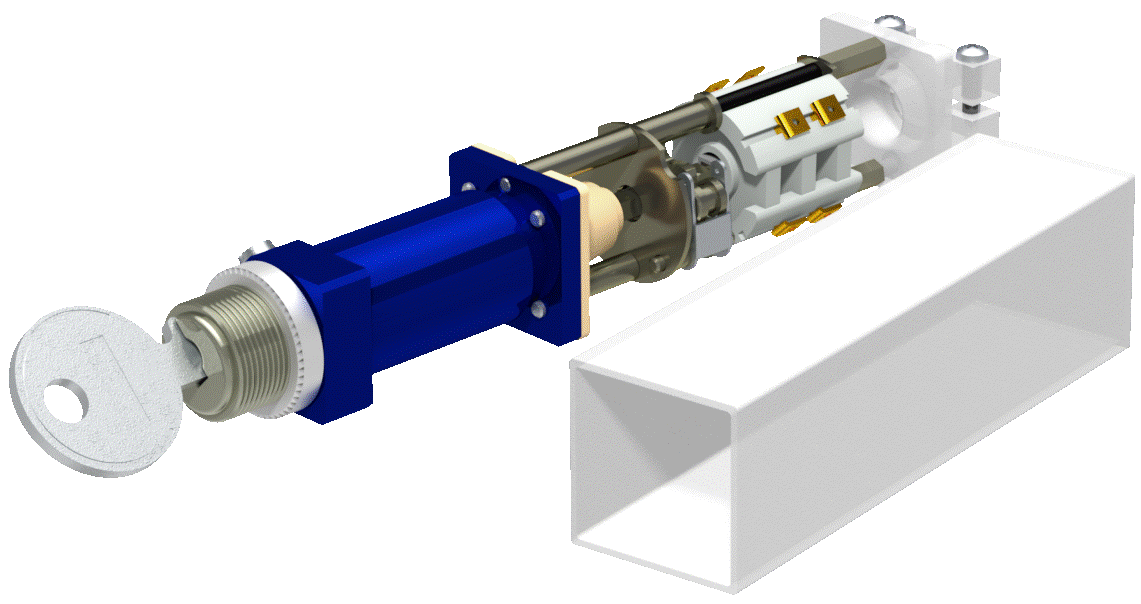

C202: Stay-put Positions.
C204: Spring Return.
Mini Miniature key-operated Switch for mosaic panels.
Particularly suitable for preventing activation by non authorized staff.
Up to 8 packets of contacts can be assembled.
Equipped with RONIS MICRO lock available with all the same numbering, with all different numbering or with numbering differentiated group by group.
