The switches R20 have special characteristics that make them very different from the normal switches on the market.
Listed below are some of the many advantages they provide.
It can have from 2 to 8 positions fixed or with automatic return.
It may be supplied with frontplate size 48X48mm (Q4) or 64X64mm (Q7)
Standard Type or Padlockable.

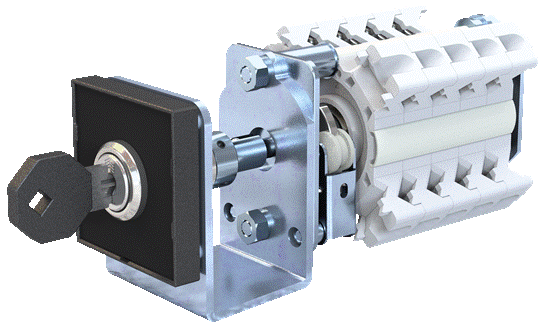

Key Operated rotary switch.
Available with keys equal to each other and up to 200
different combinations.

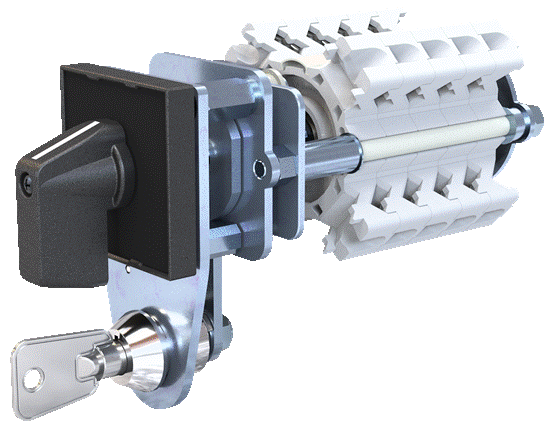

Key Lock rotary switch.
Available with keys, that can be both equals or different one from the other (up to 500 different numbers).
MASTER KEY System is also available.
The Mechanical trip Indicator shows the indication of the last given command.
Handles & Frontplates

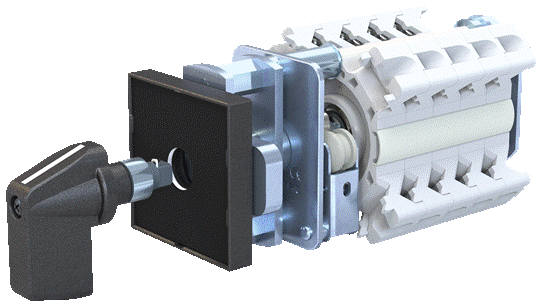

Switch with removable handle is mainly used for Safety controls.
Handles & Frontplates

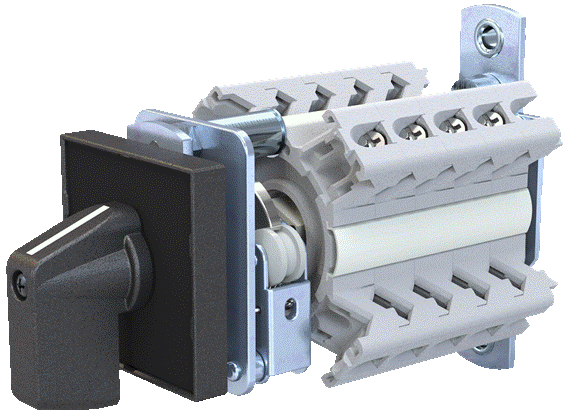

Switch suitable for fitting at the bottom of the panel.
Access to screw from the front of the switch.

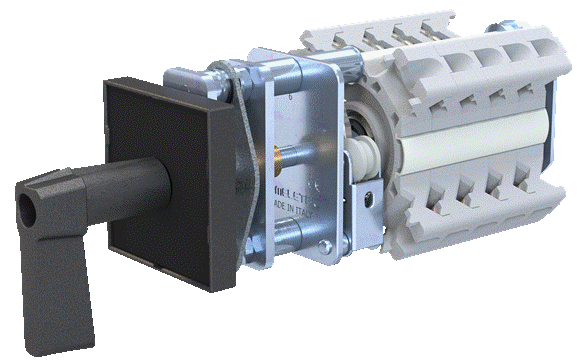

This Switch is mainly used to avoid involuntary operations.
It can be handled only by PUSHING (R104) or PULLING (R107) the knob of the switch.

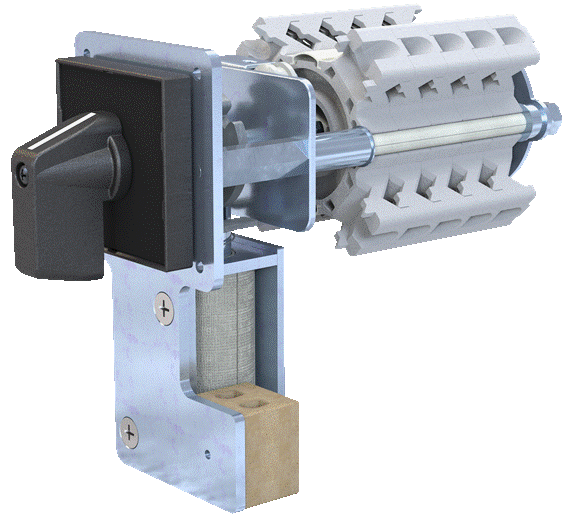

Switch with electromagnetic interlocking device.
Allows manoeuvre after electric consent.
The switch is unblocked by exciting the circuit.
SOLENOIDS AT VOLTAGES:

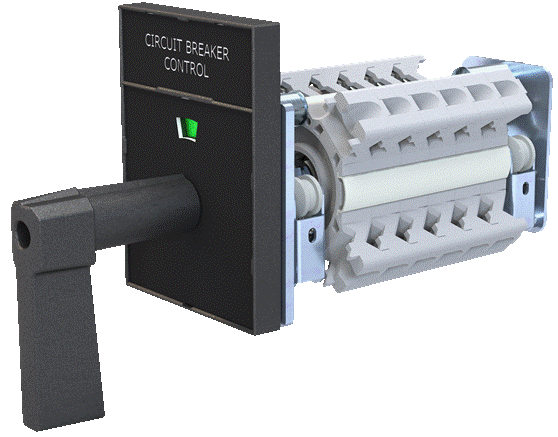

Designed for the Circuit Breaker Control.
It consists of two main groups of contacts and a dragging joint.
The group dragged contacts is used as an alarm or indication.
SOLENOIDS AT VOLTAGES:
